Preparing sheet metal for welding in box fabrication is a critical process that directly impacts the quality, durability, and overall performance of the final product. As a leading Sheet Metal Box Fabrication supplier, we understand the nuances and importance of this preparatory phase. In this blog, we'll delve into the step-by-step process of preparing sheet metal for welding, sharing our expertise and best practices.
Understanding the Basics of Sheet Metal for Box Fabrication
Before we start the preparation, it's essential to have a clear understanding of the sheet metal itself. Different metals have different properties that can affect the welding process. Common materials used in box fabrication include mild steel, stainless steel, aluminum, and galvanized steel.
- Mild Steel: It is one of the most commonly used materials due to its affordability, good weldability, and ease of forming. However, it is prone to rust if not properly protected.
- Stainless Steel: Known for its corrosion resistance and aesthetic appeal, stainless steel requires a bit more care during welding. It has a higher heat conductivity and lower thermal expansion compared to mild steel. [Stainless Steel Metal Stamping]
- Aluminum: Lightweight and corrosion-resistant, aluminum is a popular choice for applications where weight is a concern. However, it has a lower melting point and higher thermal conductivity, which can make welding more challenging.
- Galvanized Steel: This is mild steel coated with zinc to prevent corrosion. The zinc coating can vaporize during welding, producing fumes that need to be properly ventilated.
Step 1: Material Selection and Inspection
The first step in preparing sheet metal for welding is selecting the right material. This decision should be based on the specific requirements of the box, such as its intended use, environmental conditions, and budget. Once the material is selected, a thorough inspection is necessary to ensure its quality.
- Check for Surface Defects: Look for scratches, dents, or rust on the surface of the sheet metal. These defects can affect the weld quality and should be addressed before welding.
- Verify Thickness: Use a caliper or micrometer to measure the thickness of the sheet metal. Consistent thickness is crucial for achieving strong and uniform welds.
- Inspect Edge Quality: Ensure that the edges of the sheet metal are straight and free from burrs. Rough edges can cause problems during welding, such as poor fit-up and uneven heat distribution.
Step 2: Cutting and Shaping
After the inspection, the sheet metal needs to be cut and shaped into the desired dimensions for the box. This can be done using various cutting methods, such as shearing, laser cutting, or plasma cutting.
- Shearing: This is a common method for cutting straight lines in sheet metal. It involves using a pair of sharp blades to shear the metal along the desired cut line.
- Laser Cutting: Laser cutting is a precise and efficient method that uses a high-powered laser beam to cut through the metal. It can produce clean, accurate cuts with minimal heat-affected zones. [Precision Sheet Metal Solutions]
- Plasma Cutting: Plasma cutting is another popular method for cutting sheet metal. It uses a high-velocity jet of ionized gas to melt and cut through the metal. It is suitable for cutting thicker metals and can be used for both straight and curved cuts.
Once the sheet metal is cut, it may need to be shaped using bending or forming processes. This can be done using press brakes, rollers, or other forming tools.
Step 3: Cleaning the Sheet Metal
Cleaning the sheet metal is a crucial step in preparing it for welding. Any contaminants on the surface of the metal, such as oil, grease, dirt, or rust, can interfere with the welding process and cause defects in the weld.
- Degreasing: Use a degreaser or solvent to remove any oil or grease from the surface of the sheet metal. This can be done by wiping the metal with a clean cloth soaked in the degreaser or by immersing the metal in a degreasing solution.
- Rust Removal: If the sheet metal has rust on its surface, it needs to be removed before welding. This can be done using a wire brush, sandpaper, or a chemical rust remover.
- Surface Preparation: After cleaning, the surface of the sheet metal should be smooth and free from any contaminants. You may need to use a grinder or a sanding block to smooth out any rough areas.
Step 4: Edge Preparation
Proper edge preparation is essential for achieving strong and reliable welds. The edges of the sheet metal need to be prepared to ensure good fit-up and proper penetration of the weld.
- Beveling: For thicker sheet metals, beveling the edges is often necessary. This involves cutting a bevel or angle on the edges of the metal to increase the surface area for welding and improve the weld penetration.
- Fitting and Alignment: Before welding, the sheet metal pieces need to be properly fitted and aligned. This can be done using clamps, fixtures, or jigs to hold the pieces in place and ensure accurate alignment.
Step 5: Tack Welding
Tack welding is a temporary welding process that is used to hold the sheet metal pieces together before the final welding. It helps to maintain the proper alignment and fit-up of the pieces during the welding process.
- Selecting the Right Tack Weld Size and Spacing: The size and spacing of the tack welds depend on the thickness of the sheet metal and the type of welding process being used. Generally, smaller tack welds are used for thinner metals, and larger tack welds are used for thicker metals.
- Applying the Tack Welds: Use a welding torch or a welding gun to apply the tack welds at the appropriate locations. Make sure the tack welds are strong enough to hold the pieces together but not so large that they interfere with the final welding.
Step 6: Final Welding
Once the sheet metal is properly prepared and tack welded, it's time for the final welding. The choice of welding process depends on the type of metal, the thickness of the sheet metal, and the specific requirements of the box.
- MIG Welding: Metal Inert Gas (MIG) welding is a popular welding process for sheet metal fabrication. It uses a wire electrode that is fed through a welding gun and a shielding gas to protect the weld from oxidation.
- TIG Welding: Tungsten Inert Gas (TIG) welding is a more precise and controlled welding process that is suitable for thinner sheet metals and applications where high-quality welds are required. It uses a non-consumable tungsten electrode and a shielding gas to create the weld.

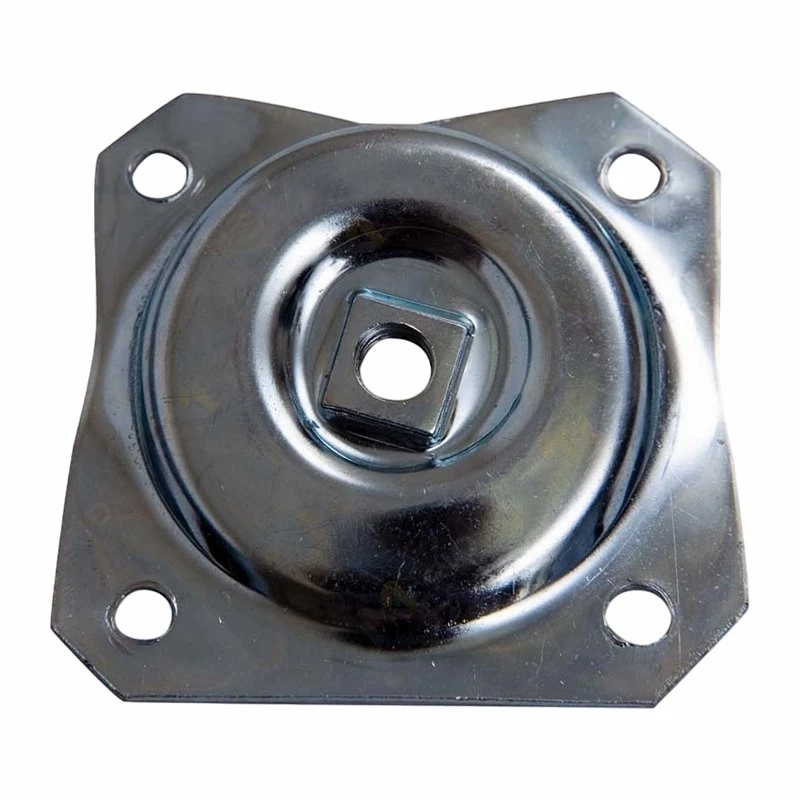

- Spot Welding: Spot welding is a process that is used to join two or more sheets of metal together at specific points. It is commonly used in automotive and electronics industries for joining thin sheet metals. [Automotive Sheet Metal Stamping]
Step 7: Post-Welding Treatment
After the welding is complete, the box may need to undergo some post-welding treatments to improve its appearance and performance.
- Grinding and Polishing: Grinding and polishing the welds can help to smooth out the surface and remove any excess weld material. This can improve the appearance of the box and make it more resistant to corrosion.
- Heat Treatment: Heat treatment can be used to relieve stress in the weld and improve the mechanical properties of the metal. This is especially important for thicker sheet metals and applications where high strength is required.
- Painting or Coating: Applying a paint or coating to the box can provide additional protection against corrosion and improve its aesthetic appeal.
Conclusion
Preparing sheet metal for welding in box fabrication is a complex process that requires careful planning, attention to detail, and the use of the right tools and techniques. By following the steps outlined in this blog, you can ensure that your sheet metal boxes are of the highest quality and meet the specific requirements of your customers.
If you're in need of high-quality sheet metal box fabrication services, we'd love to hear from you. Our team of experienced professionals is dedicated to providing precision sheet metal solutions that meet your exact specifications. Whether you need a single prototype or a large production run, we have the expertise and capabilities to deliver the results you need. Contact us today to discuss your project and get a quote.
References
- AWS Welding Handbook, Volume 1: Welding Science and Technology
- ASM Handbook, Volume 6: Welding, Brazing, and Soldering
- Sheet Metal Fabrication: A Practical Guide by David Crolla
